Shape Bias & Robustness

Evaluation via Cue Decomposition for Image Classification and Segmentation

Edgar Heinert1 • Thomas Gottwald1 • Annika Mütze1 • Matthias Rottmann1

1 Department of Mathematics, University of Wuppertal, Wuppertal, Germany

OSVIA Lab Logo University of Wuppertal Logo
arXiv Page GitHub Code (TBA)
Title image 1 Title image 2 Title image 3 Title image 4

Abstract

We propose a two-step cue decomposition pipeline that separates images into their shape cues using Edge-Enhancing Diffusion and their texture cues using Voronoi patch shuffling, enabling measurement of model reliance on either cue. Building on this, we introduce:

  • a unified Cue-Decomposition Shape Bias (CDSB) metric applicable to both image classification and, for the first time, semantic segmentation models, and
  • a Cue-Decomposition Robustness (CDR) metric assessing model performance in the absence of shape or texture cues.

Using these AI-free, handpicking-free metrics, we conduct:

  • the first CDSB and CDR evalutaiton of 43 pre-trained image classification models, and
  • the first shape bias and CDR evaluation of 23 pre-trained semantic segmentation models.

Method Overview

Our pipeline first applies Edge‑Enhancing Diffusion: The PDE-based diffusion method propagates color values along edges but not across them and thus removes texture from images while preserving their shape. The resulting shape cue keeps category‑defining contours. Next, we compute a Voronoi texture abstraction on the original image, which discards shape but preserves local texture statistics. A number of Voronoi cells are sampled and each displays a randomly chosen part of the original image. The CDSB and CDR proposals are then chosen from a number of candidate metrics which included both additional cue-decomposition approaches as well as a number of AI-free cue-conflict-metric candidates and are compared to the established shape bias metric by Geirhos et al.

By evaluating models on shape‑only (xS) and texture‑only (xT) inputs, we can decompose the prediction confidence into distinct cues.

EED Cues

EED Cue Example 1
EED Cue Example 2
EED Cue Example 3
EED Cue Example 4

Voronoi Cues

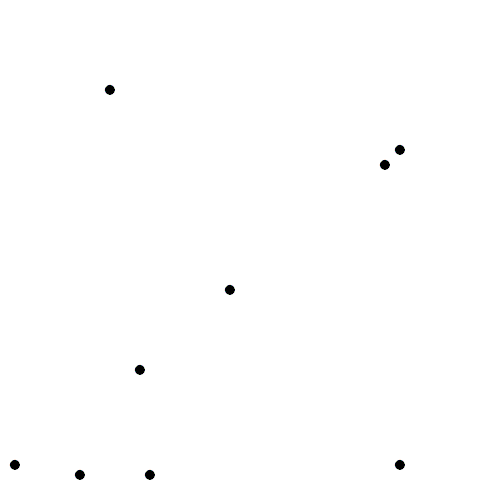

Voronoi Cue Example 1

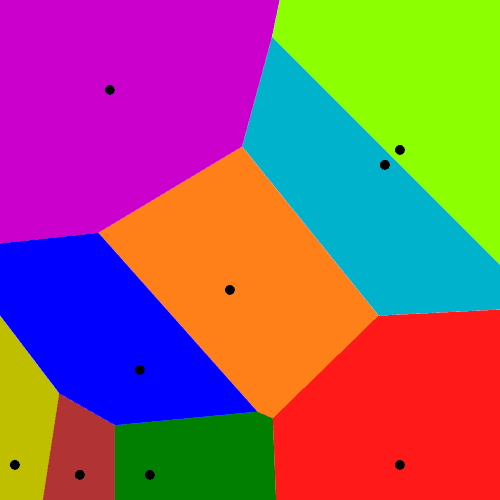

Voronoi Cue Example 2

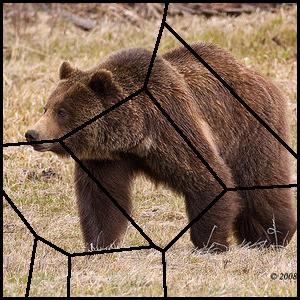

Voronoi Cue Example 3
Voronoi Cue Example 4

Cue Conflict

Cue Conflict Example 1
Cue Conflict Example 2
Cue Conflict Example 3
Cue Conflict Example 4

Metrics at a Glance

Segmentation Shape‑Bias & Robustness

• [MODEL NAME] shows the strongest [...] (XXX)— XXX pp higher than [architecture name]‑based [MODEL NAME].
• Robustness score ρ = 0.XXX predicts mIoU drops on Cityscapes‑C.
• ...

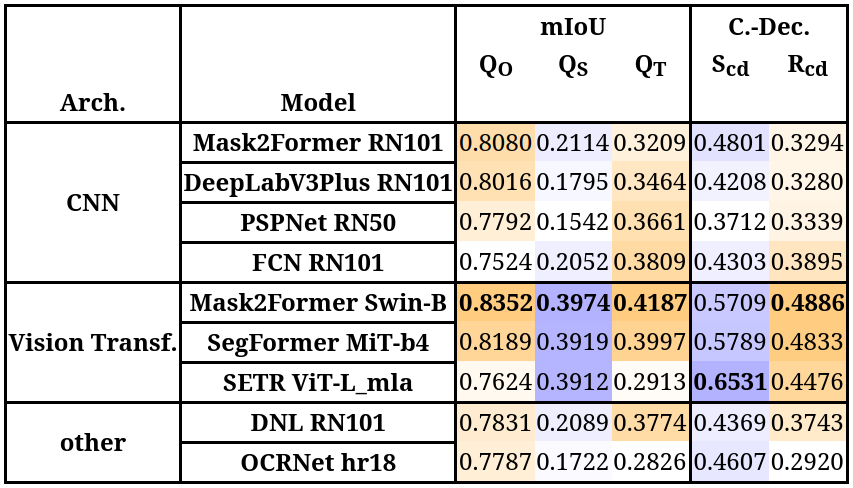

Segmentation metrics summary

Classification Shape-Bias & Robustness

• CNNs (e.g. [MODEL NAME]) remain texture-leaning (shape-bias < 0.XXX); [MODEL NAME] reaches 0.XXX after fine-tuning.
• Our robustness metric correlates with [MODEL NAME] drops at r = 0.XXX— better than mCE.
•...

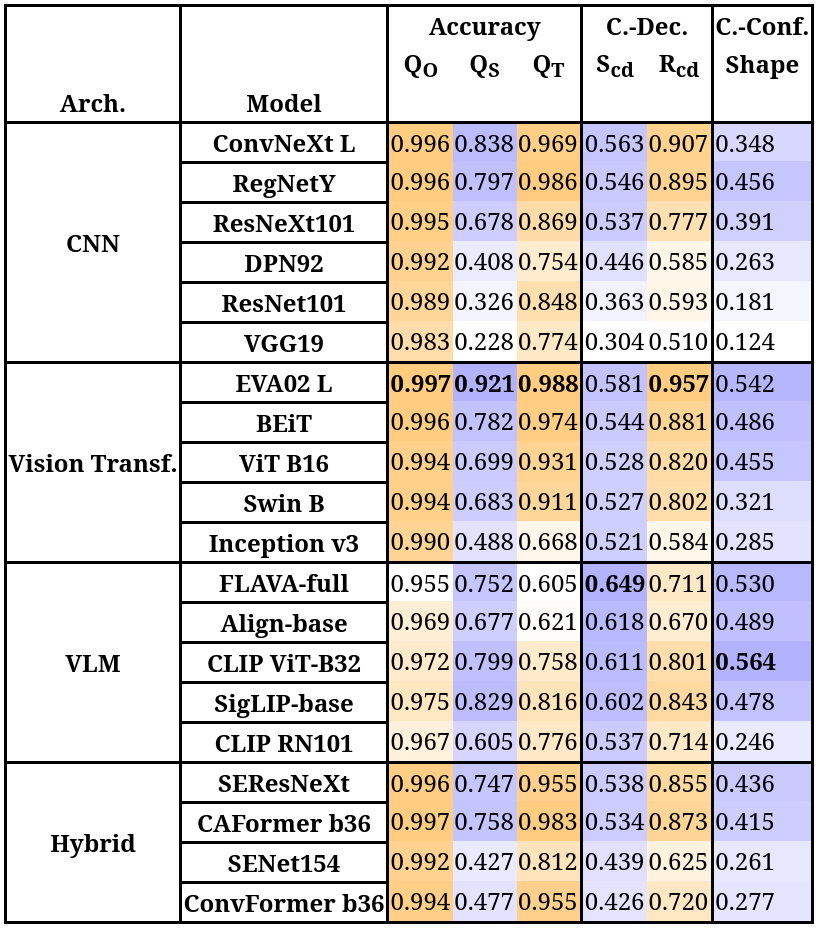

Classification metrics summary

Qualitative Results

Compare how each model handles shape‑only, texture‑only, and original inputs. Use the buttons to switch between models.

Segmentation GT – original
GT – Original

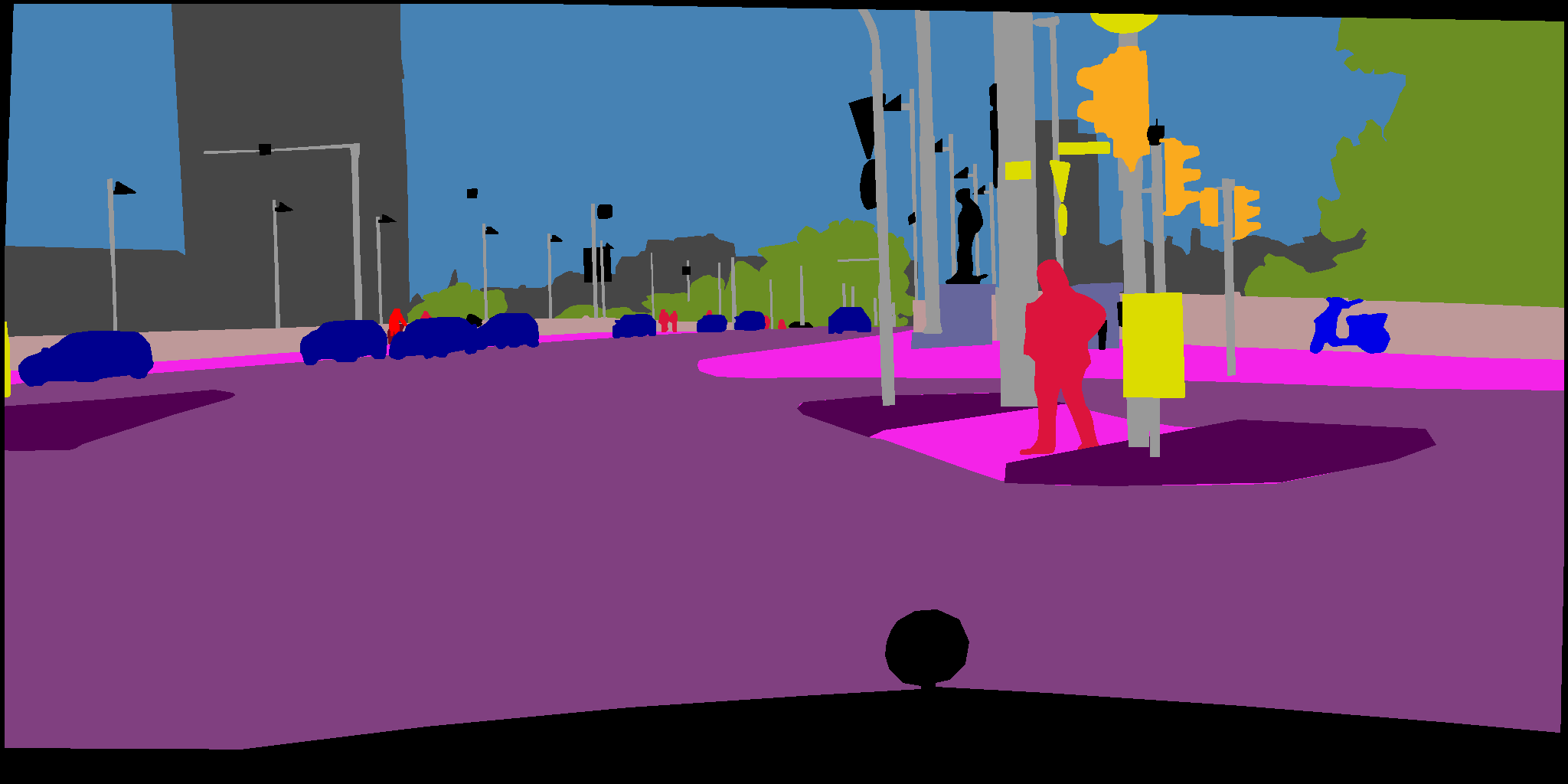

Segmentation GT – EED
GT – EED
Segmentation GT – Voronoi
GT – Voronoi
Street scene – original
Input – Original
Street scene – EED
Input – EED
Street scene – Voronoi
Input – Voronoi
Model prediction – original
DV3+R50
Model prediction – EED
DV3+R50
Model prediction – Voronoi
DV3+R50

Resources & Links

Acknowledgments

A.M., M.R. and E.H. acknowledge support by the German Federal Ministry of Education and Research within the junior research group project “UnrEAL” (grant no. 01IS22069).

OSVIA Lab Logo

OSVIA Lab

Citation

@article{Heinert2025ShapeBias,
  title={Shape Bias & Robustness via Cue Decomposition},
  author={Heinert, E. and Gottwald, T. and Mütze, A. and Rottmann, M.},
  journal={arXiv:2503.12453},
  year={2025}
}
